Conway Cleveland Corporation

Lumber Rules



The Conway-Cleveland lumber scaling rules are used to measure the board feet content of sawn lumber. They are the product of many years of experience. Through constant improvement, they have come to be preferred by nearly all lumber inspectors everywhere.

With flexible shafts still hand-crafted from the finest split hickory money can buy, these rules have a special quality due in large part to the meticulous care we take in the selection of our raw materials.

Our patented heads are one-piece, light-weight hardened stainless steel with pre-bent sharpened points for grabbing and flipping the lumber. They will never rust and the points stay sharp a very long time. The figures are large, crisp, bold and black for ease of reading.

Each ruler has a six inch walnut handle, sized for comfort and rounded to fit the palm of your hand. Finally, each rule is protected by two coats of polyurethane, giving lasting abrasion resistance and protection. Three scale configurations offered: 4-line: 9',11',13',15' one side 12',10',14',16' other side. A second 4-line configuration: 4',5',6',7' one side 8',9',10',12' other side. The 3-line configuration: 8',10',18' one side 12',14',16' other side. Two head types: Go-No-Go notched or straight.


- - Products - -

100 Series Lumber Rules
from 54.50

Three line configuration 8'10'18' on one side 12'14'16' on the other.  Traditional layout on the rule, used typically by a right handed grader.

Size:
Head:
Quantity:
Add To Cart
200 Series Lumber Rules
from 54.50

Four line configuration with 9'11'13'15' on one side and 12'10'14'16' on the other.  Traditional layout typically used by a right handed grader.

Size:
Head:
Quantity:
Add To Cart
300 Series Lumber Rules
from 54.50

Three line configuration with 8'10'18' on one side 12'14'16 on the other side.  Modern layout allowing easy left or right handed use.

Size:
Head:
Quantity:
Add To Cart
400 Series Lumber Rules
from 54.50

Four line configuration with 9'11'13'15' on one side 12'10'14'16 on the other side.  Modern layout allowing easy left or right handed use.

Size:
Head:
Quantity:
Add To Cart

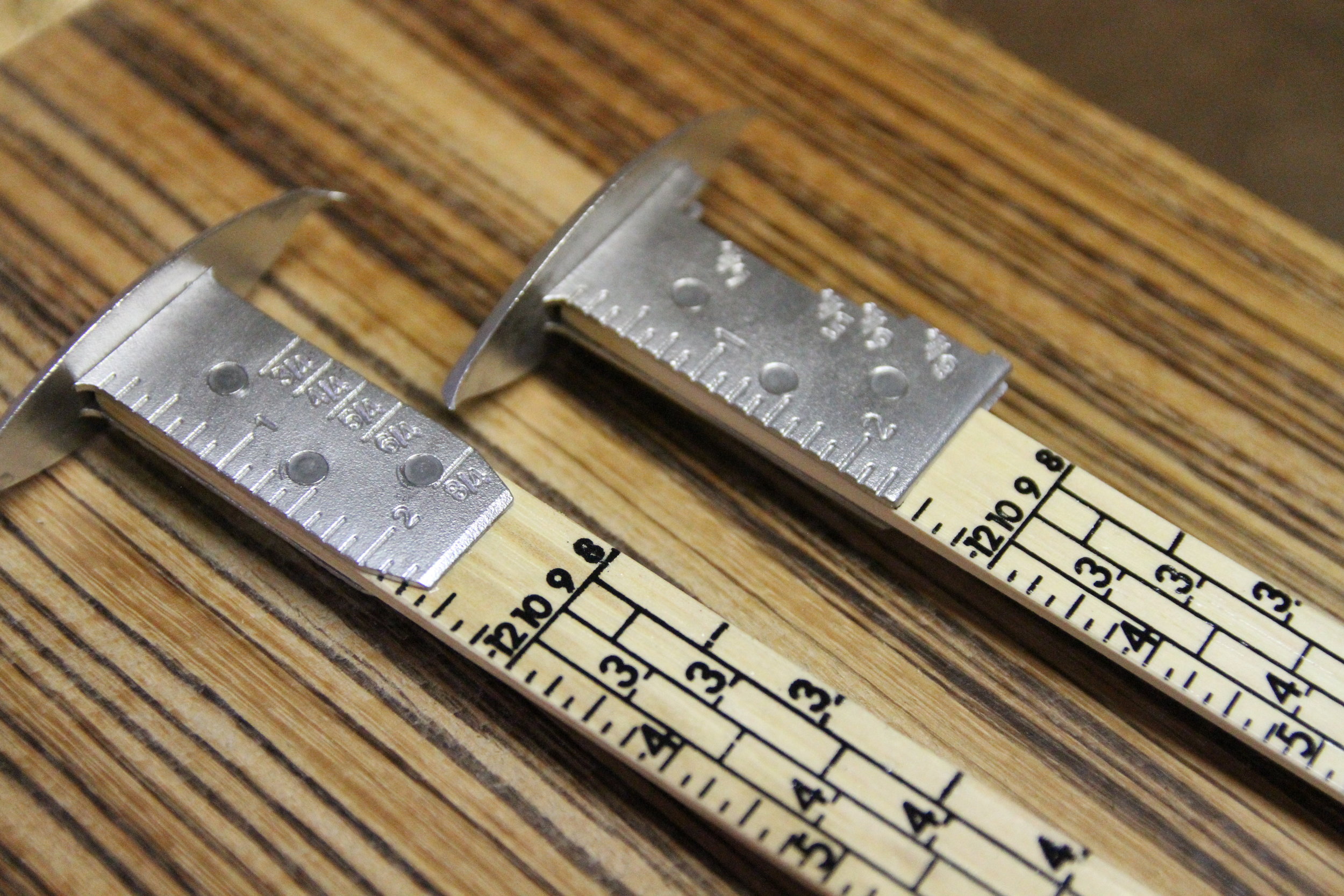

420 Series Lumber Rules
from 54.50

In addition to the standard scales we have developed a ruler specifically designed to measure short lumber or cuttings. Ideally suited for producers of and users of Walnut lumber. 4-line: 12',10',9',8' one side 7',6',5',4' other side.

Size:
Head:
Quantity:
Add To Cart
Metric Configuration Lumber Rules
61.20

Measures board metric units (BMU) of 1000 square centimeters as defined by the National Hardwood Lumber Association. A 4-line ruler, it measures lengths of 3.0, 3.6, 4.2, and 4.8 meters on one side and 2.7, 3.3, 3.9, and 4.5 on the other. A centimeter scale is integrated along one edge and the head is stainless steel marked for metric thicknesses.



Quantity:
Add To Cart
Replacement Heads
18.00
Style:
Quantity:
Add To Cart

Tree Sticks
22.75

Used to determine board footage of standing timber.  Available in Doyle, Scribner and International scales.  All Tree sticks are Form Class 78

Scale:
Quantity:
Add To Cart
Cruiser Sticks
from 55.65

Used to measure height, diameter, and board feet content of standing trees. Scales include: Biltmore tree diameter, Merritt Hypsometer tree height, Decimal C scale log rule, and inches.

Measurement:
Quantity:
Add To Cart
Thickness Gauge
18.10

Stainless steel go no go finger gauge used to determine lumber thickness.

Measures 3/8" thru 1" in 1/8" increments and 1-1/4" thru 2" in 1/4" increments.
